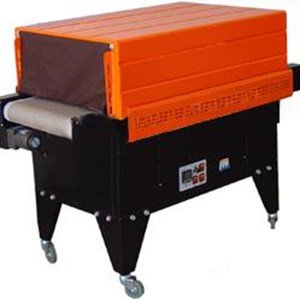

Shrink Wrapping/Tunnel Machine
Product Description
BS-A series shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control and AC variable speed
Regulation. There are two optional conveyors, including Teflon belt type and roller type.
Features:
- Both the height of tunnel and shutters on two sides are adjustable.
- Shrink wrapping machine BS-4535LA are designed with lengthened double hot wind tunnel for higher and better shrinking effect.
Application: BS-A series shrink tunnel are applied to heat shrinkable film such as PVC, POF, PP etc.
| Machine Details | Specifications |
|---|---|
| Technical Data Model | BS-4535A |
| Voltage | (V/Hz) AC 220/50 Hz, 380v (Single or Three Phase) |
| Power | 6.5kw |
| Conveyor Speed | 0-10m/min |
| Conveyor Loading | 10kg |
| Tunnel Size | 450×350 (18”~14”) |
| Machine Size | 1200×650×1240mm |
